Specifications
Electrical parameters
| Light source | LED |
| Power voltage | AC 220–240 V / 50–60 Hz |
| Connection method | leading out cable, leading out cable with connector (G) |
| Ballast part | electronic driver with surge protection L/N-Ground 10 kV |
| Surge protection | additional surge protection 10 kV (S) |
| Fuse | fuse 6,3 A (J) |
| Possibility of regulation | non-dimmable (not labeled), DALI (DALI), night dimming (A) preparation for wireless communication NEMA (N), Zhaga (Z) |
| Constant lumen output | CLO (C) |
Light parameters
| Optical system | roads (Mxx), roads (Lxx), directional (Pxx) area (Uxx) combined optics (Kxx) |
| Light distribution | direct |
| Colour rendering index | Ra > 70, Ra > 80 |

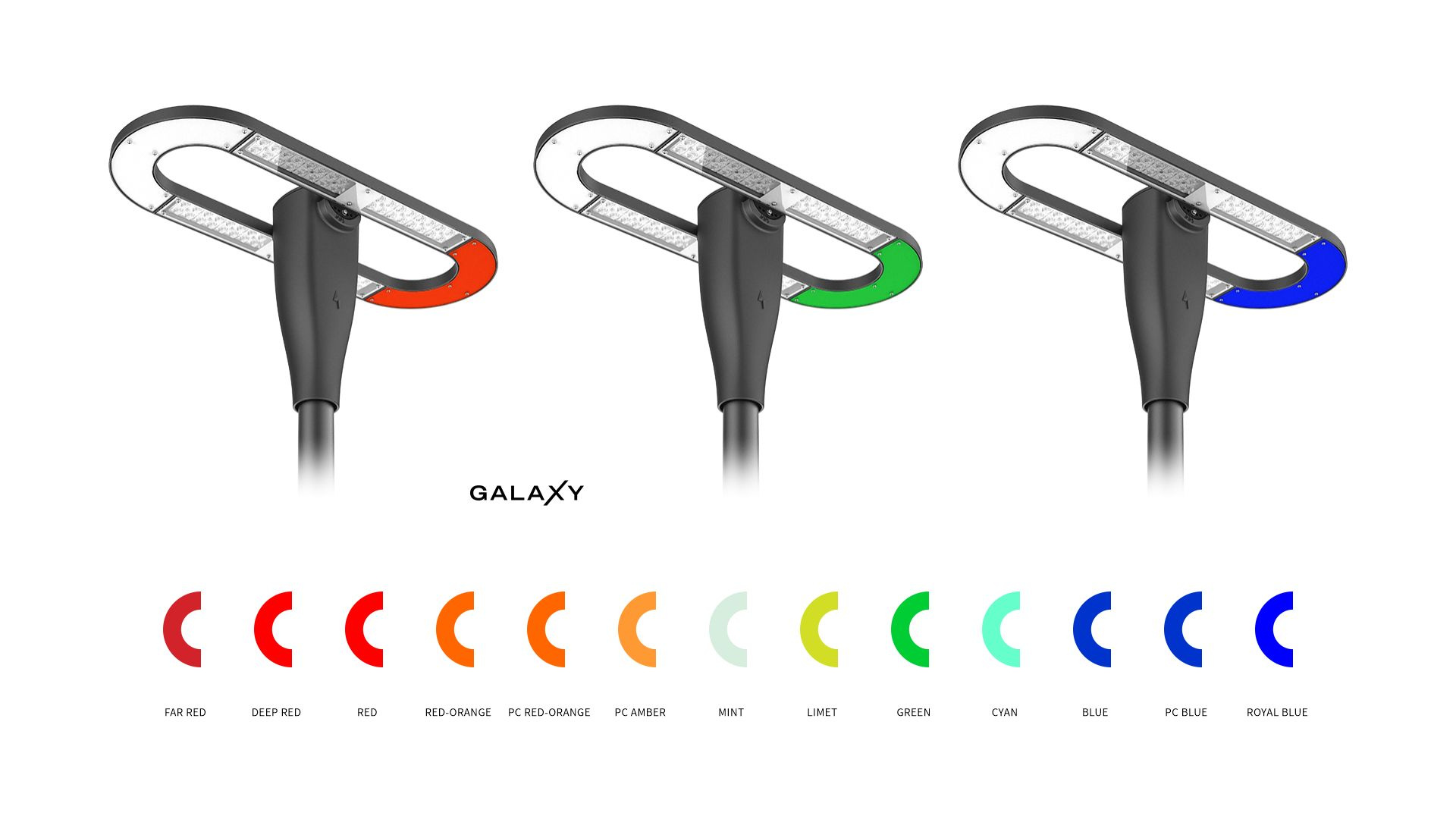

| Colour temperature | 2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K Option of backlighting the semi-circular surfaces with basic colours (blue (B) , green (G) , red (R), orange (O), cyan (C)) |
| Service life | > 100,000 hrs. (L90B10) |
Construction
| Luminaire body | aluminum cast |

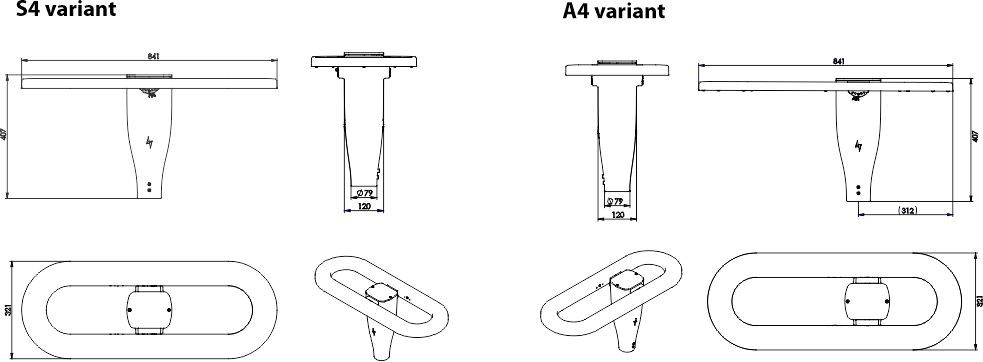

| Variant design of the lamp | center position of the column (S4), offset position of the column (A4) |
| Colour | RAL 7015 |
| Surface type | matte |
| Luminaire cover | tempered glass |
Safety
| Protection class | I, II |
| Maximum ambient temperature | -40 / +55 °C |
| Ingness protection | IP 66 |
| Impact protection | IK 09 |
| Certification | Environmental Product Declaration (EPD) |
Mounting
| Method | pole (48–67 mm) adjustable joint ± 20° |
| Recommended height | max. up to 8 m |
| Use | bike path, outdoor areas, pedestrian zones, sidewalks; road classes II. and III. |
