Specifications
Electrical parameters
| Light source | LED |
| Power voltage | AC 220-240 V / 50-60 Hz |
| Connection method | protection class II – leading out cable 30 cm |
| Ballast part | electronic driver with surge protection L/N-Ground 10 kV |
| Surge protection | additional surge protection 20 kA (1,5 kV) |
| Possibility of regulation | non-dimmable (not labeled), DALI (DALI) preparation for wireless communication NEMA (N), Zhaga (Z) – only for NITYA L and NITYA XL |
| Emergency module | NO |
Light parameters

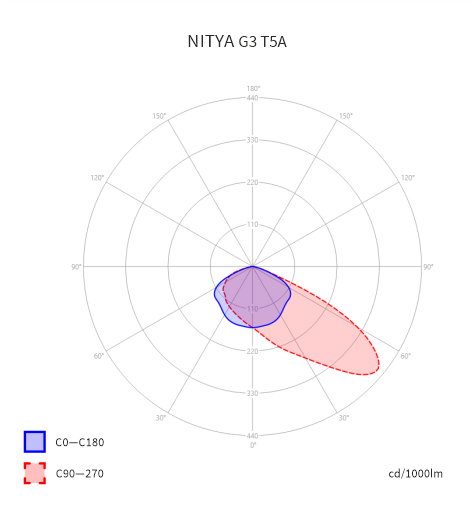

| Optical system | (P51), (P52), (T5A), (L19), (C51), (C52), (C56) |
| Light distribution | direct |
| Colour rendering index | Ra > 70 |
| Colour temperature | BLUE FREE™ (AMBER) / 2,200 K / 2,700 K / 3,000 K / 4,000 K |
| Service life | > 100,000 hrs. (L90B10) |
Construction
| Luminaire body | aluminum cast |
| Colour | RAL 9022 |
| Surface type | mat |
| Luminaire cover | safety glass |
Safety
| Protection class | II |
| Maximum ambient temperature | -40 / +50 °C |
| Ingress protection | IP 66 |
| Impact protection | IK 09 |
| EMC | YES |
| CB test | YES |
| Certification | ENEC |
Mounting
| Method | by mounting on a caliper (part of the luminaire), tilt 0–90° |
| Recommended height | from 6 to 15 m |
Accessories
| Clips | NO |
| Use | open areas, parking, public areas, sports facilities |
