Specifications
Electrical parameters
| Light source | LED |
| Power voltage | AC 230 V / 50 Hz |
| Connection method | terminal block |
| Ballast part | electronic driver |
| Possibility of regulation | non-dimmable (not labeled), DALI (DALI) |
| Emergency module | NO |
Light parameters

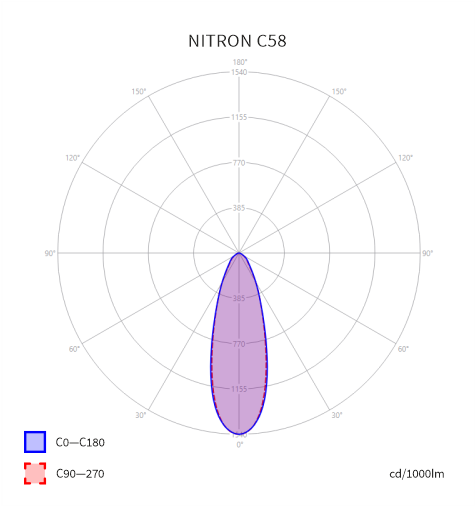

| Optical system | area lighting (C58), (RL01), (RL02) |
| Light distribution | direct |
| Colour rendering index | Ra > 70 |
| Colour temperature | 4,000 K |
| Service life | > 100,000 hrs. (L90B10) |
Construction
| Luminaire body | aluminum cast |
| Colour | RAL 9022 |
| Surface type | matte |
| Luminaire cover | safety glass |
Safety
| Protection class | I, II |
| Maximum ambient temperature | max. -30 / +40 °C |
| Ingress protection | IP 66 |
| Impact protection | IK 09 |
| Mounting on normally flammable surfaces | YES |
Mounting
| Method | by mounting on a bracket (part of the luminaire) tilt ± 90° ot the entire luminaire, ± 20°C for individual modules |
| Recommended height | up to 40 m |
Accessories
| Clips | NO |

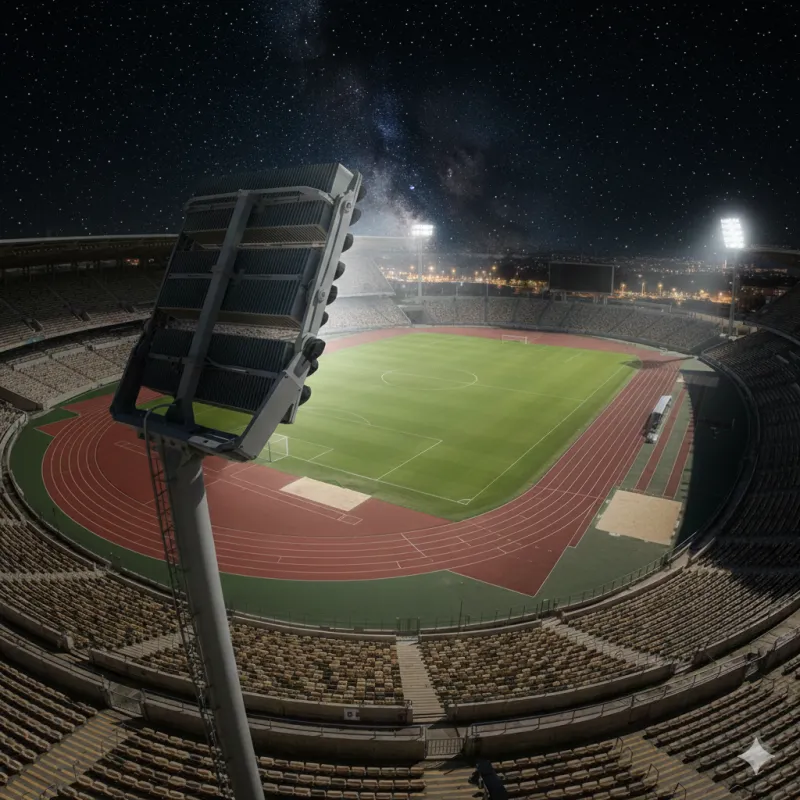

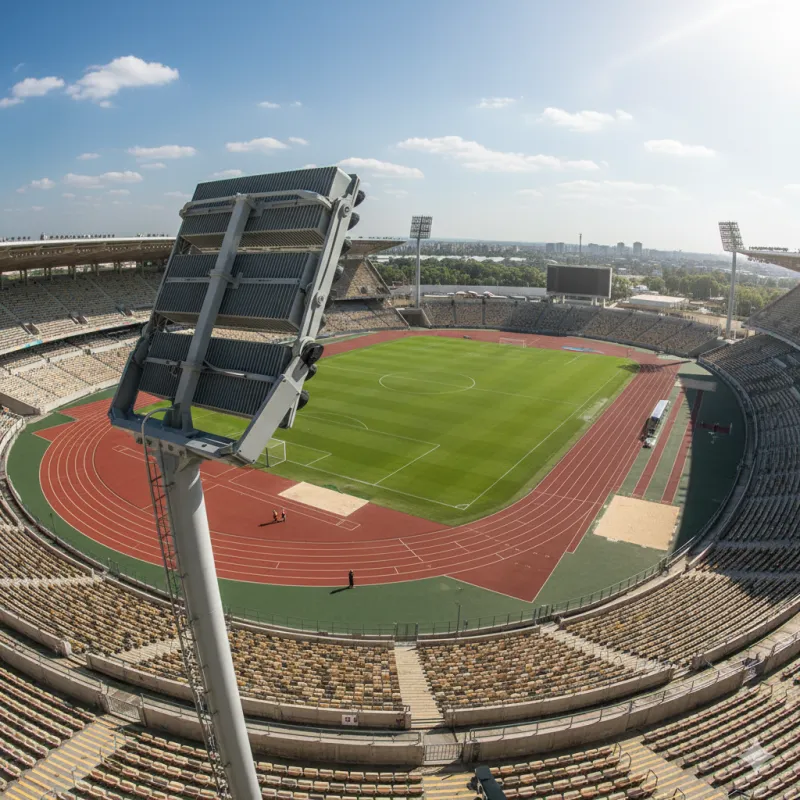

| Use | open spaces, parking, public spaces, sports facilities, railways, football fields |
